Application
Description
A UV printer is a type of digital printer that uses ultraviolet (UV) light to cure or dry the ink as it is printed. Unlike traditional printing methods, UV printers can print directly on a wide range of materials, including plastic, glass, metal, wood, and acrylic. The UV-curable inks are exposed to UV light, which instantly hardens the ink, producing vivid, durable, and scratch-resistant prints. UV printers are commonly used for signage, promotional items, packaging, and custom products.
Guide Rail
High-quality guide rails ensure stable printhead movement, high precision, low noise, and long lifespan.
LED UV Lamp
Equipped with high-power UV LED chips, it intelligently adjusts curing power and exposure time to adapt to different materials and ink thicknesses.
Cylinder/Pen fixture

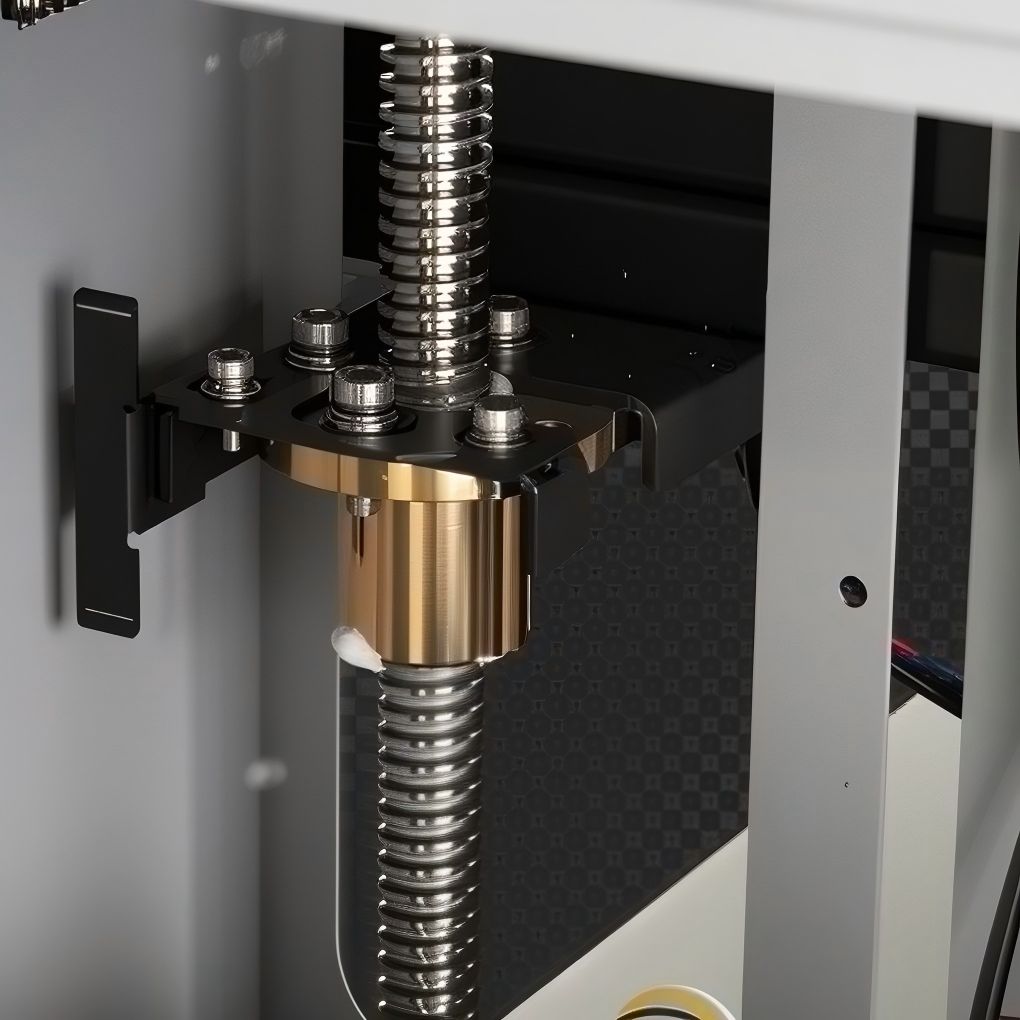

Z-axis lead screw drive ensures stable platform lifting and lowering.
Ink cartridge + Ink shortage alarm
white ink automatic mixer to prevent white ink blockage and make printing smoother; Ink shortage alarm, reminding users to add ink timely when the ink shortage, making the printing process more hassle free.
Platform
It can better adsorb materials, make printing more stable.

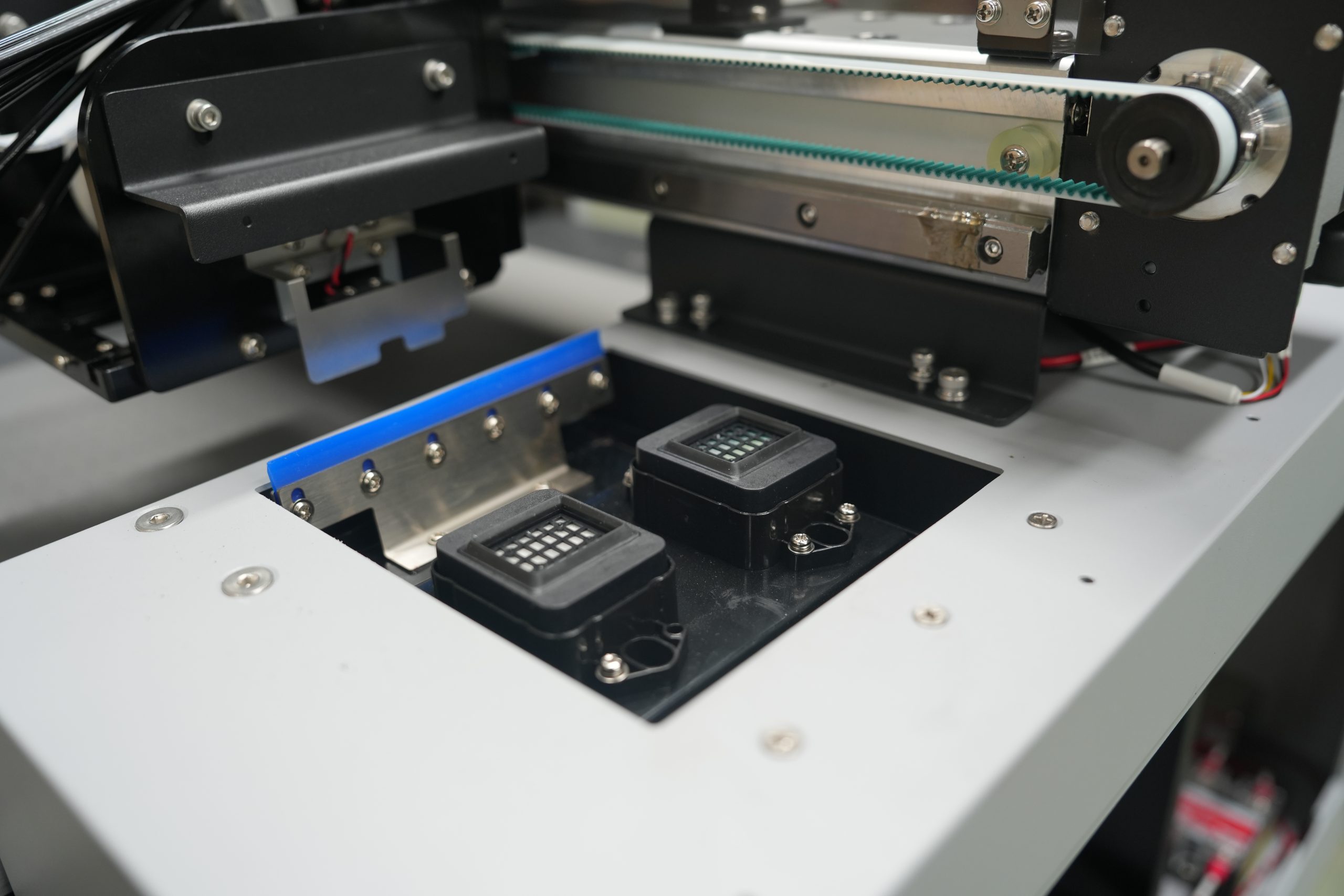

Printhead carriage
if the printhead automatically stops printing when it encounters an obstacle, which effectively protects the printhead
Specifications
| Model | LC-UV A3S |
| Print head type | 3200-HD/XP600 |
| Print head number | 1/2pcs |
| Speed | 2.5 ㎡/h |
| UV lamp cooling way | Aircooling |
| Ink type | UV ink |
| Ink color | CMYK+W+V |
| Cartridge capacity | 250ml/color |
| Ink supply method | Positive pressure continuous ink supply |
| Ink curing method | LED uv light cured |
| Printing width | 280X450 mm |
| Media type | Tablets, cubes, and cylinders can be printed directly; suitable for materials such as glass, metal, plastic, wood, and cardboard,etc. |
| Media thickness | 0-120mm |
| RIP soft ware | 7.0UVMaintop (Standard) |
| Printing platform | Vacuum metal plateform |
| Print interface | USB |
| Operating system | Windows10/Win 11 |
| Image file format | JPG/TIFF/PNG |
| Power (W) | 450W |
| Enironmental requirements | Work temperature: 18-25℃; working humidity: 35-65%RH |
| Machine size (LxWxH) | 800 mmx560 mmx620 mm |
| Net weight(Kg) | 110kg |
