Application
Description

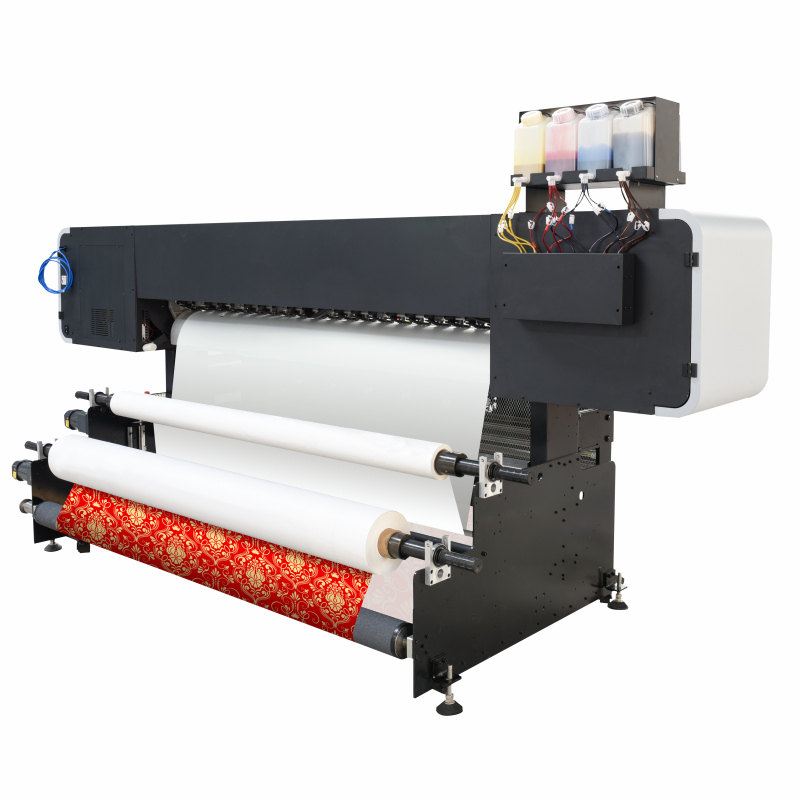

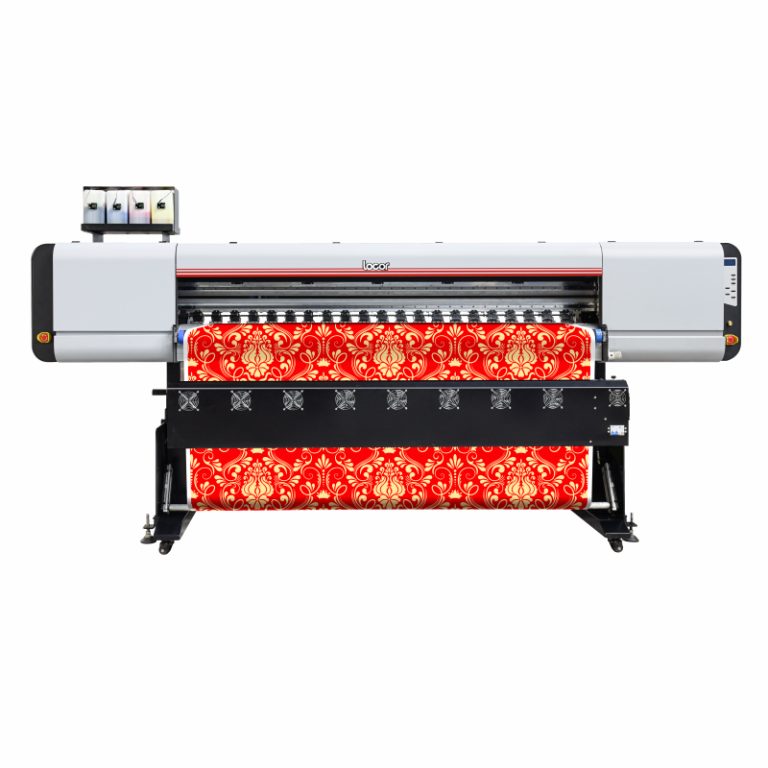

High-strength frame, large steel plate links on the side, higher stability of the whole machine, can realize kilometer paper shaft, reduce the frequency of medium replacement, and greatly save time and manpower.
Leisai Motor
Equipped with high-power Leisai paper feed motors, significantly enhancing printing stability.

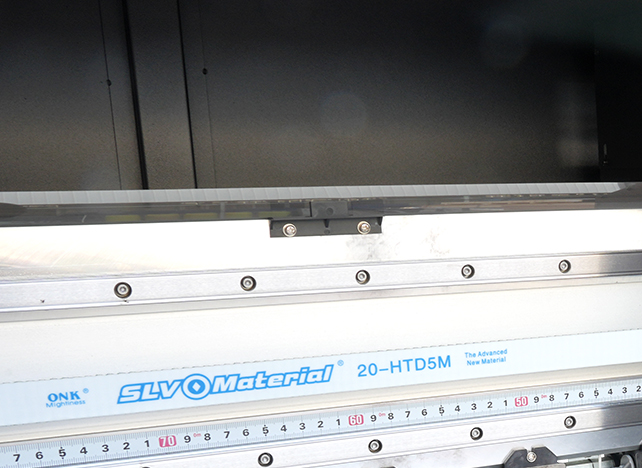

Dual Guide Rails
Equipped with THK silent dual guide rails, ensuring smoother vertical highspeed operation and higher printing precision.
5000ML Large Ink Cartridges
Larger capacity reduces refills, saving time and labor. Built-in alarms alert for low ink, ensuring uninterrupted printing operation.
High-Power Dual Dryers
Equipped with dual dryers to speed up ink drying, ensuring smooth paper feeding and collection for high-speed printing.
Specifications
| Product Model | LC-1808A | LC-1804A |
| Printhead Type | Epson 13200-A1 | Epsoni3200-A1 |
| Number of Printhead | 8 | 4 |
| Printhead Height | 2-3mm | |
| Printhead Cleaning | Fully automatic ceaning with anti-clogging,flash spraying, and automatic molsturizing functions | |
| Ink Type | Dye-sublimation ink | |
| Ink Color | Four colors(C/M/Y/K) | |
| Ink Cartridge Capacity | 5000ml per color | |
| Ink Supply Method | Neg ative pressure continuous ink supply system | |
| Printing Width | 1820mm | |
| Media | Heat transfer paper | |
| Maximum Roll Weight | Kilometer paper weight(optional) | |

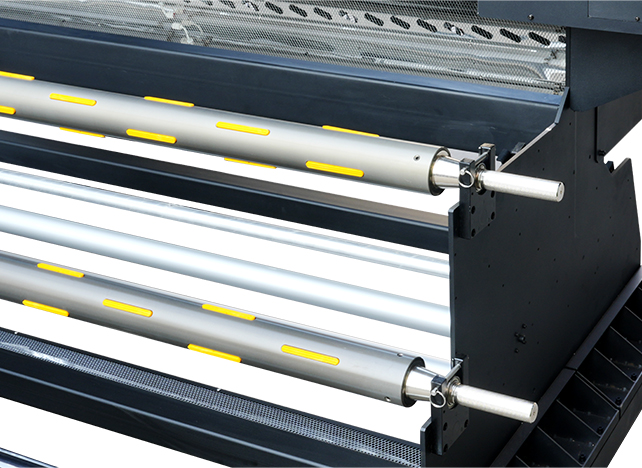

| Take-up Device | Air shaft automatic winding and un winding system | |
| Heating System | Three-Stage Embedded Constant Temperature Heating System (Front, Middle,Rear) | |
| External Drying Configuration | Dual infrared heating with external drying fan | |
| Operation Language | Chinese/English | |
| Computer System | Win11/Win10 | |
| Operating Environment | Temperature range 18C-25C; Humidity range 35%-65% Rh | |
| Printing Interface | USB | |
| RIP Software | Maintop/Photoprint/Wasatch | |
| Power Parameters | AC-220V 50Hz/60HZ | |
| Power(W) | Standby power 64W, maximum power 6000W | |
| Nolse Level | Standby<32dB,operating s65dB | |
| Machine Dimensions | 3500*1300*1750mm(L*W*H) | |
| Machine Net Weight | 750 Kg | |
| Package Dimensions | 3550*1250*1810mm(L*W*H) | |
