Application
Description
A UV printer is a type of digital printer that uses ultraviolet (UV) light to cure or dry the ink as it is printed. Unlike traditional printing methods, UV printers can print directly on a wide range of materials, including plastic, glass, metal, wood, and acrylic. The UV-curable inks are exposed to UV light, which instantly hardens the ink, producing vivid, durable, and scratch-resistant prints. UV printers are commonly used for signage, promotional items, packaging, and custom products.
Specifications

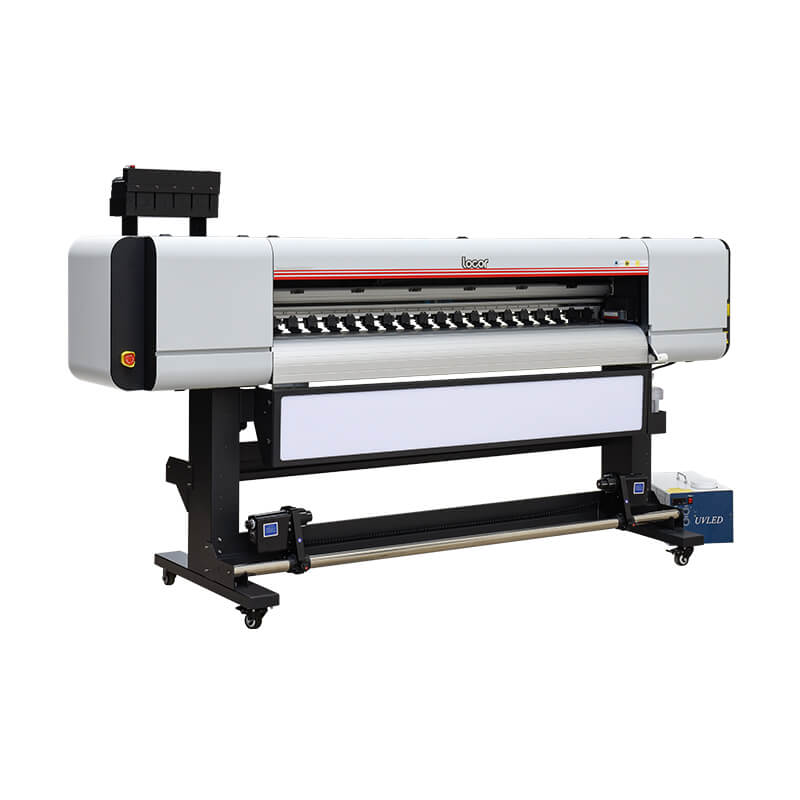

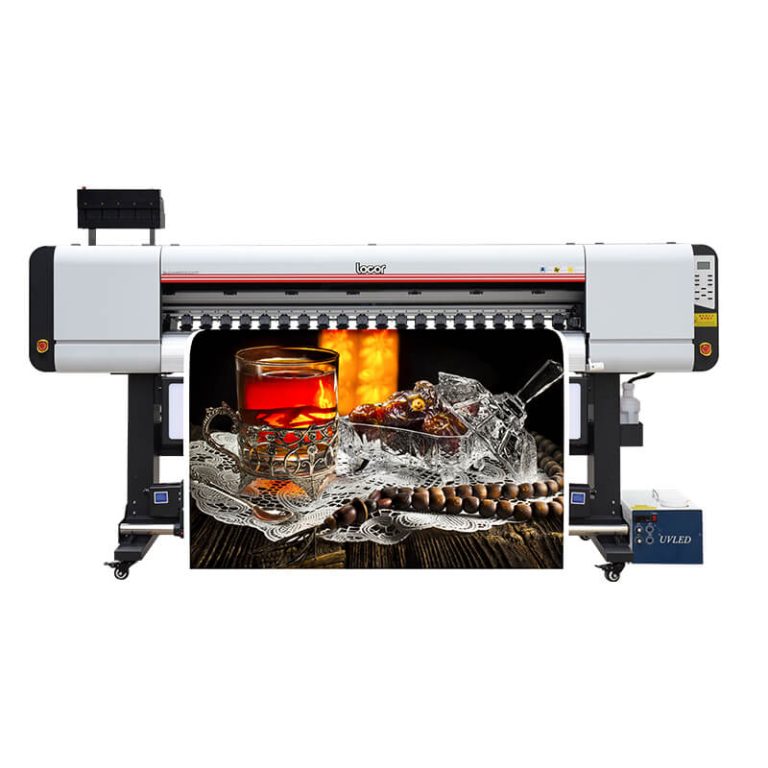

| Product Model | Deluxejet 1840UV |
| Printhead Type | Epson I3200-A1/E1 |
| Number of Printhead | 3/4pcs |
| Printhead Height | 2-3mm |
| Printhead Cleaning | Fully automatic cleaning with anti-clogging, flash spraying, and automatic moisturizing functions |
| Ink Type | Eco-Solvent / Water-Based / Sublimation Inks |
| Ink Color | Four colors (C/M/Y/K) eight colors(C/M/Y/K/LC/LM/LK/LLK) |
| Ink Cartridge Capacity | 3000ml per color |
| Ink Supply Method | Negative pressure continuous ink supply system |
| Printing Width | 1820mm |
| Media | Photo Paper / PP Paper / Canvas / Rice Paper / Vehicle Vinyl / Heat Transfer Paper, and More. |
| Maximum Roll Weight | ＜80 Kg |
| Take-up Device | Standard Configuration |
| Heating System | Three-Stage Embedded Constant Temperature Heating System (Front, Middle, Rear) |
| External Drying Configuration | Dual infrared heating with external drying fan |
| Operation Language | Chinese/English |
| Computer System | Win11/Win10 |
| Working Environment | Temperature range 18°C-25°C; Humidity range 35%-65% Rh |
| Printing Interface | USB |
| RIP Software | Maintop/Photoprint |
| Power Parameters | AC-220V, 50Hz/60Hz |
| Power (W) | Standby power 72W, maximum power 5500W |
| Noise Level | Standby ＜32dB, operating ≤65dB |
| Machine Dimensions | 3124mm x 950mm x 1605mm (L x W x H) |
| Machine Weight | 330 Kg |
| Package Dimensions | 3180mm x 1140mm x 660mm (L x W x H) |
Optional Items
Get a Quote Now
Related Video
Factory Strength
A Powerful Printer Manufacturer From China Since 2003
20+ Years Printer Factory
Technical support
Support methods usually include telephone support, online customer service, remote support, etc.
Printing supplies
Locor manufacturers or authorized dealers usually provide corresponding inks, powder films and other consumables.
Spare parts
We usually provide customers with original accessories (such as boards, ink sacs, motors, etc.).
