Application
Description
- The printhead releases three ink droplet sizes, with small droplets offset for color compensation, improving image detail.
- LC, LM, LK, LLK serve as complementary colors to CMYK, rendering the print quality more refined and the color gradients morenaturally transitional.
External Fans and Heater
One external heater and dryer fans was integrated in one part.
Media touching switch.
When carriage touch the media, switches could be on, and system emergency stop printing.
Media detector
When media is going to use up, system could pause printing.
Press rolls
Adopt rubber pressure roller to ensure more precise and smooth paper feeding without warping the paper.
Printhead height adjustment
You can adjust the height between head plate and media by manual.
Heating control board
Front / middle / back heating could be controlled by a smart board.
Specifications
| ProductModel | Deluxejet1880 | |
| Printhead Type | 13200 | |
| NumberofPrinthead | 8 | |
| Printhead Height | 2-3mm | |
| Printhead Cleaning | Fully automatic cleaning with anti-clogging,flash spaaying, and automatic moisturizing functions | |
| Ink Type | Eco-Solvent/Water-Based | |
| Ink Color | Four colors(C/M/Y/K/LC/LM) & Eight colors(C/M/Y/K/LC/LM/LK/LLK) | |
| Ink Cartridge Capacity | 3000ml per color | |
| Ink Supply Method | Negativepressurecontinuousinksupply | |
| Printing Width | 1900mm | |
| Media | Photo Paper/ PP Paper/ Canvas/ Rice Paper / Vehicle Vinyl / Heat Transfer Paper, and More. | |
| Maximum Roll Weight | ＜80 Kg | |
| Take-up Device | Standard Configuration | |
| Heating System | Three-Stage Embedded Constant Temperature Heating System (Front, Middle, Back) | |
| External Drying Configuration | Dual infrared heating with external drying fan | |
| Operation Language | Chinese/English | |
| Computer System | Win11/Win10/Win7 | |
| Working Environment | Temperature range 18C-25*C; Humidity range 35%-65% Rh | |
| Printing Interface | USB/GigabitEthernet | |
| RIP Software | Maintop/Photoprint | |
| Power Parameters | AC-220V,50Hz/60Hz | |
| Power (W) | Standby power 72W, maximum power 5800W | |
| Noise Level | Standby <32dB, operating s65 dB | |

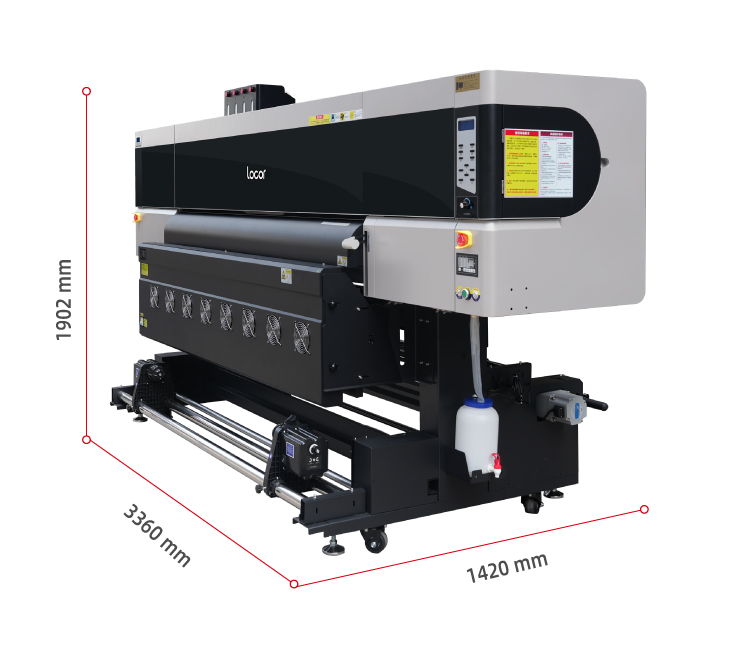

| Machine Dimensions | 3360×1420×1902mm(L*W*H) | |
| Machine Weight | 400Kg | |
| Package Dimensions | 3540×1500×1950mm(L*W*H) | |
Optional Items
Get a Quote Now
Related Video
Factory Strength
A Powerful Printer Manufacturer From China Since 2003
20+ Years Printer Factory
Technical support
Support methods usually include telephone support, online customer service, remote support, etc.
Printing supplies
Locor manufacturers or authorized dealers usually provide corresponding inks, powder films and other consumables.
Spare parts
We usually provide customers with original accessories (such as boards, ink sacs, motors, etc.).
