Application
Description

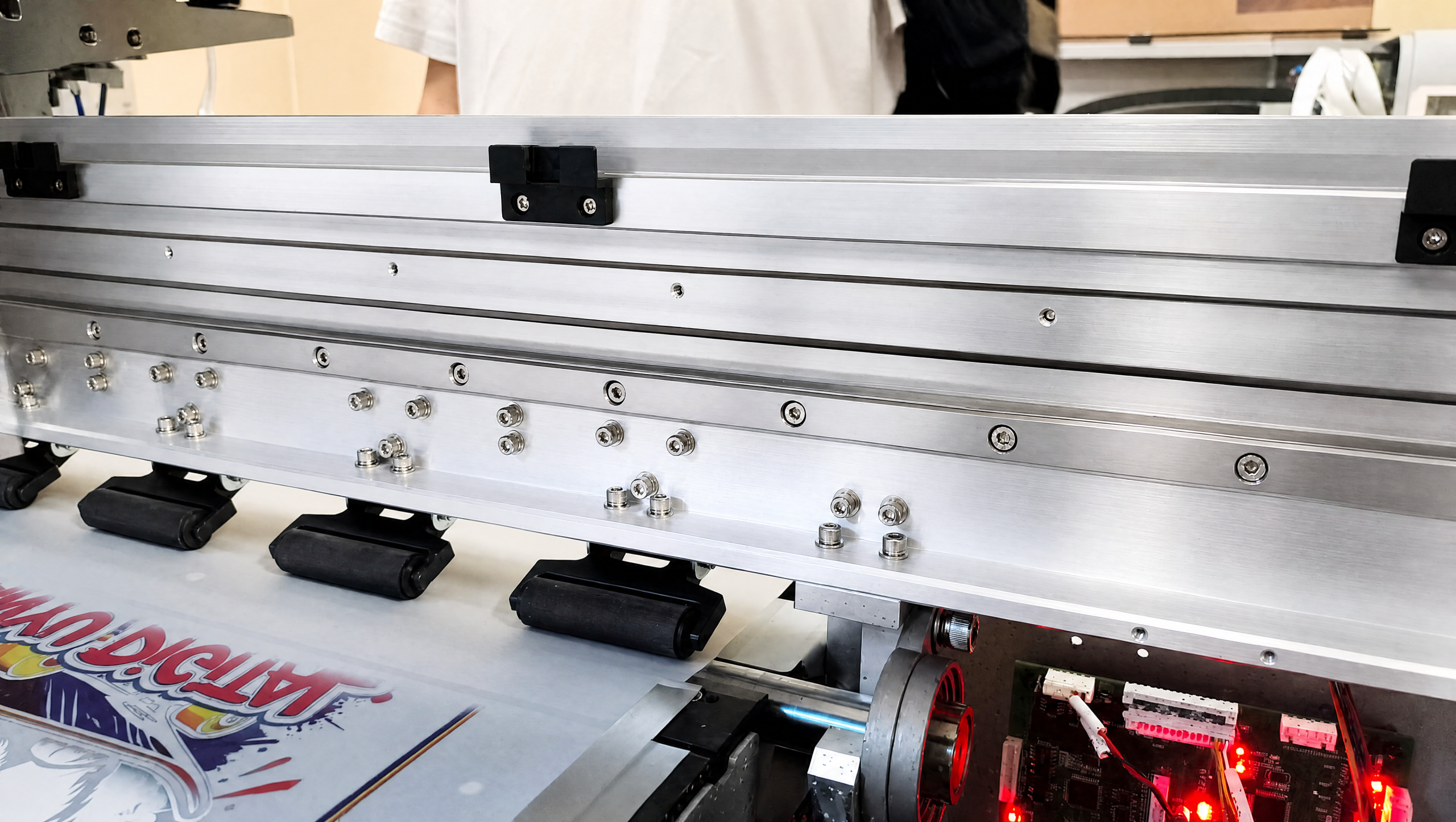

Guide Rails
High-precision linear guide rail-smooth operation, high accuracy，low noise,long life

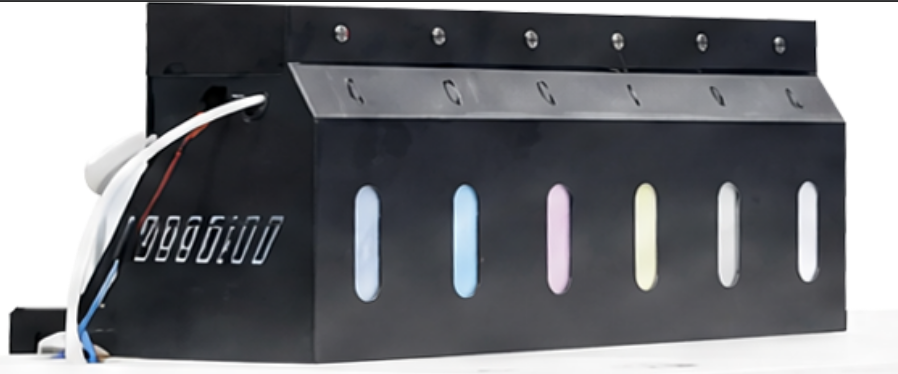

low-inkwarning
The main ink tank is eguipped with a low ink alarm. which automatically alerts when ink is low to prevent printing inter-ruptions.

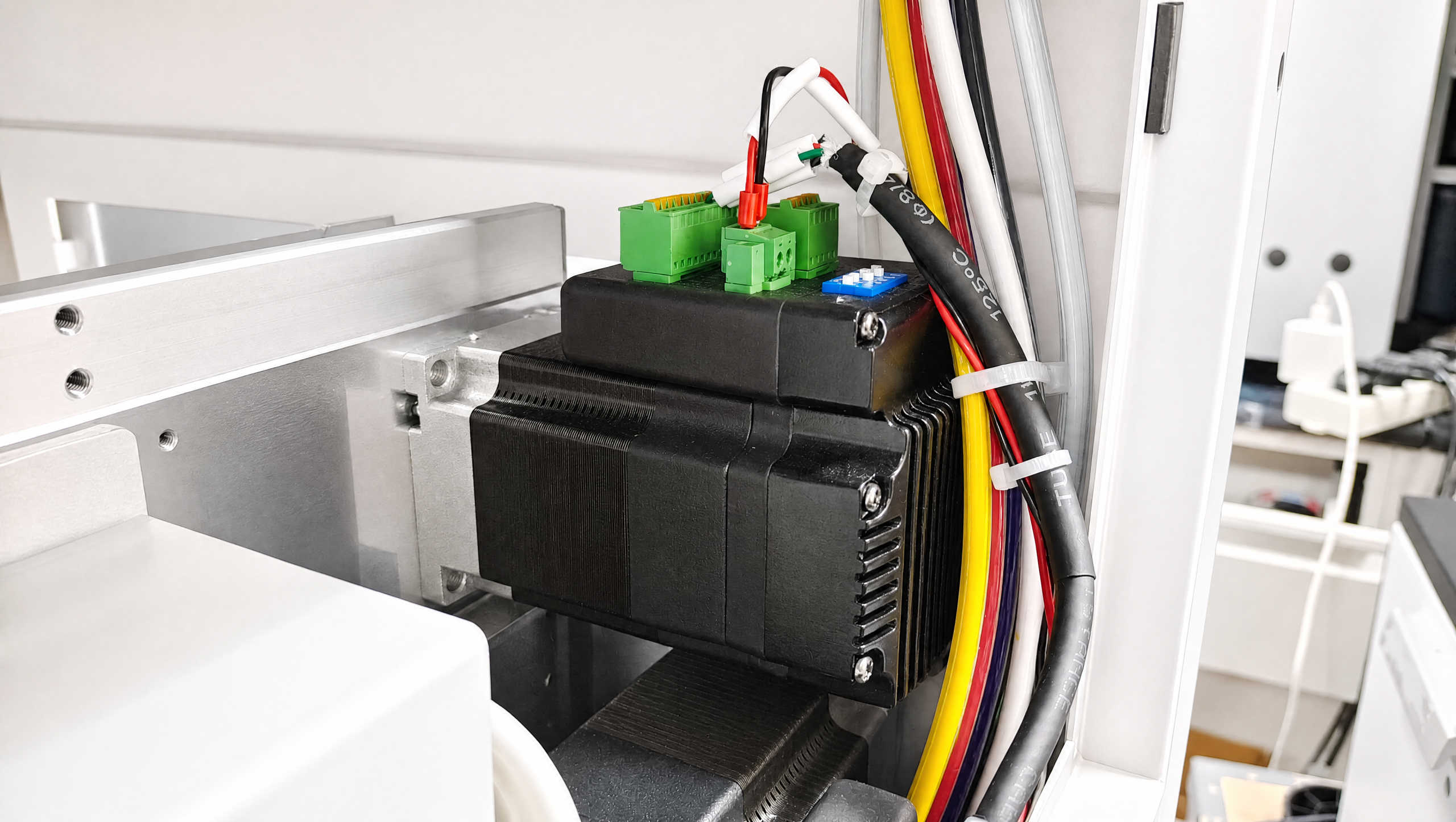

Servo motor
High guality motors make the machine run more smoothly print more accurately, and improve work efficiency.

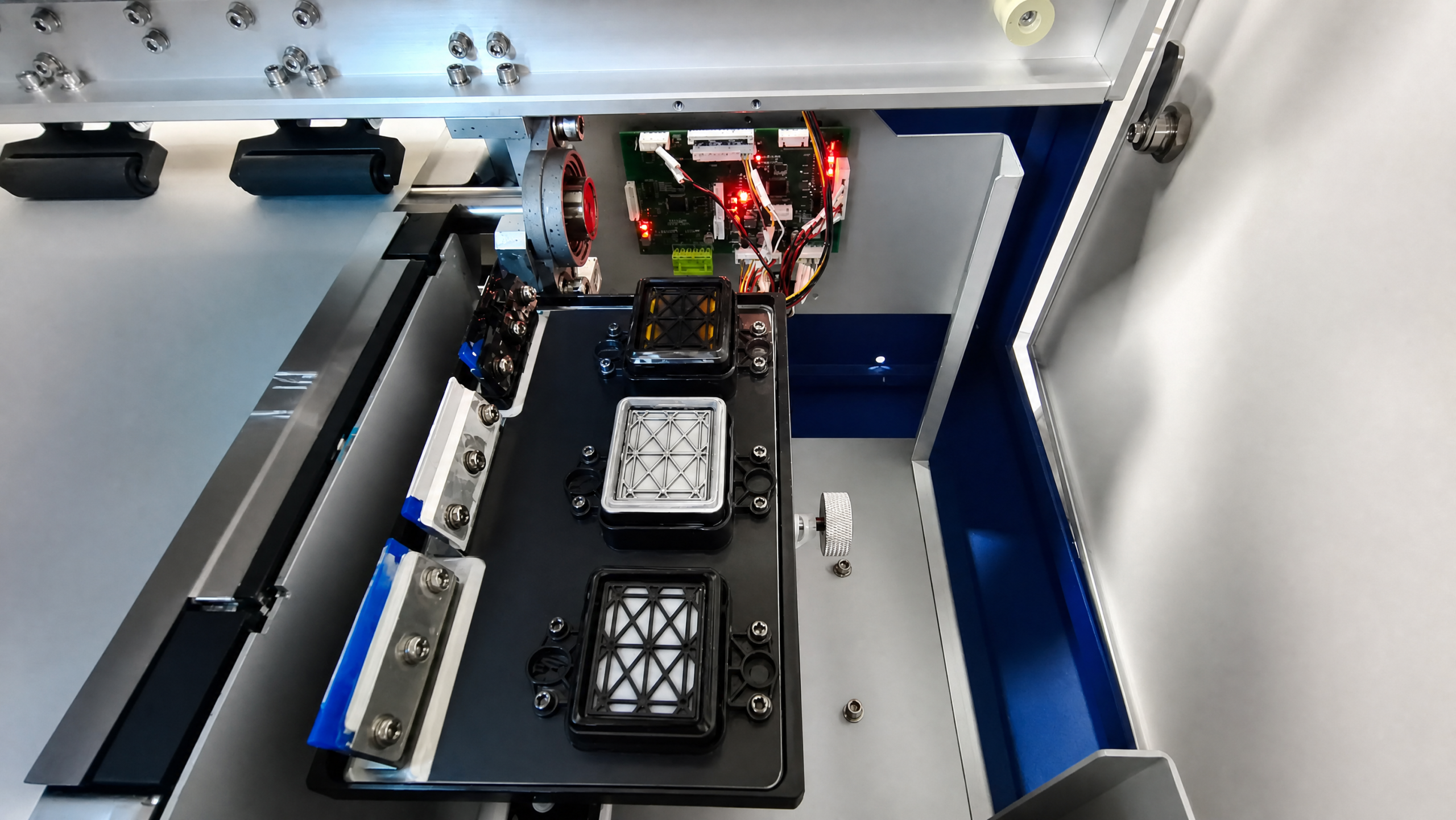

Capping Station
Precision lifting,directed drainage，and overflow guidance work in synergy to create a comprehensive printhead maintenance safeguard

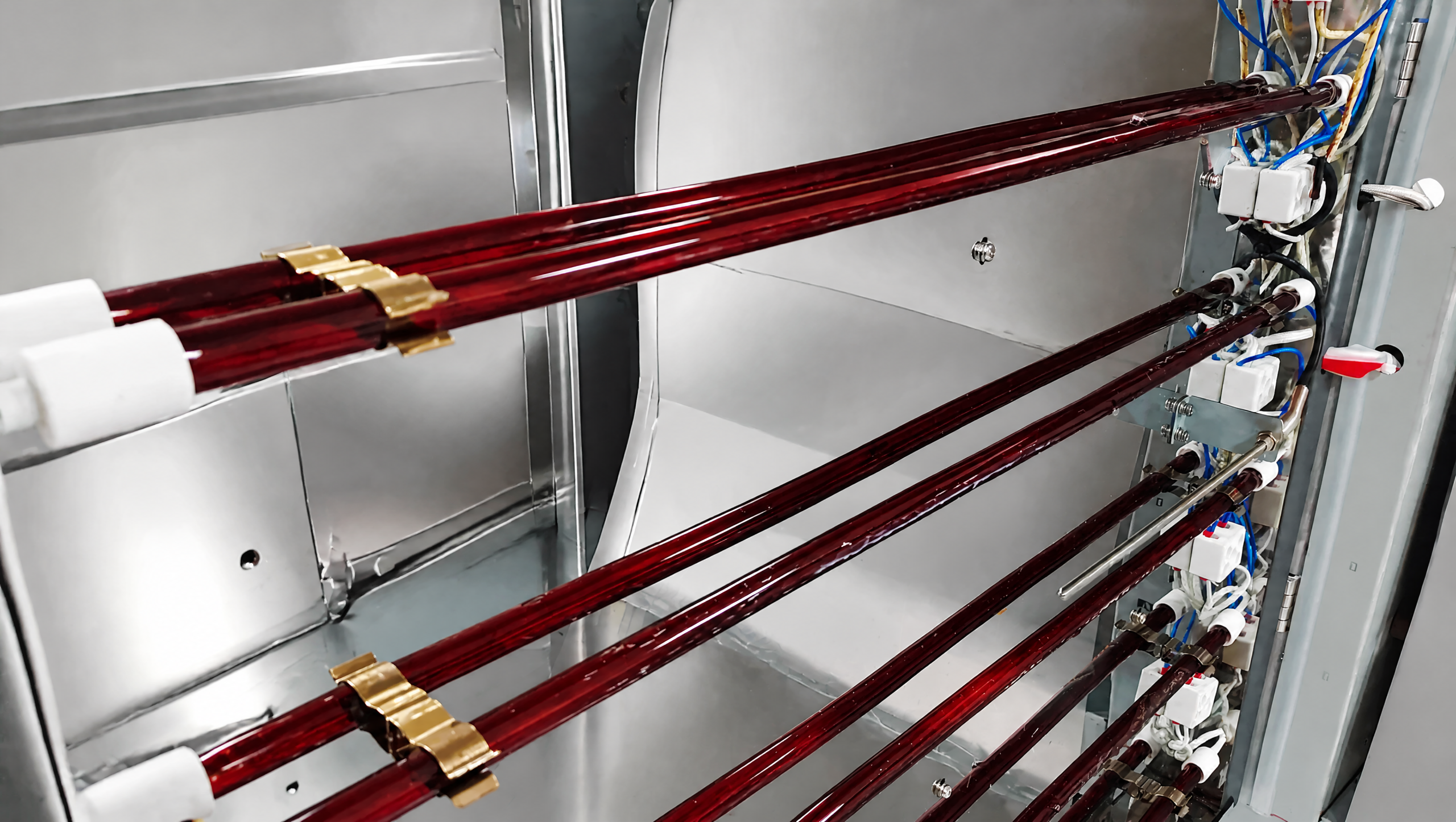

Drying and curing
The front heater is eguipped with infrared heating tubes to achieve rapid drying and curing of ink and adhesive

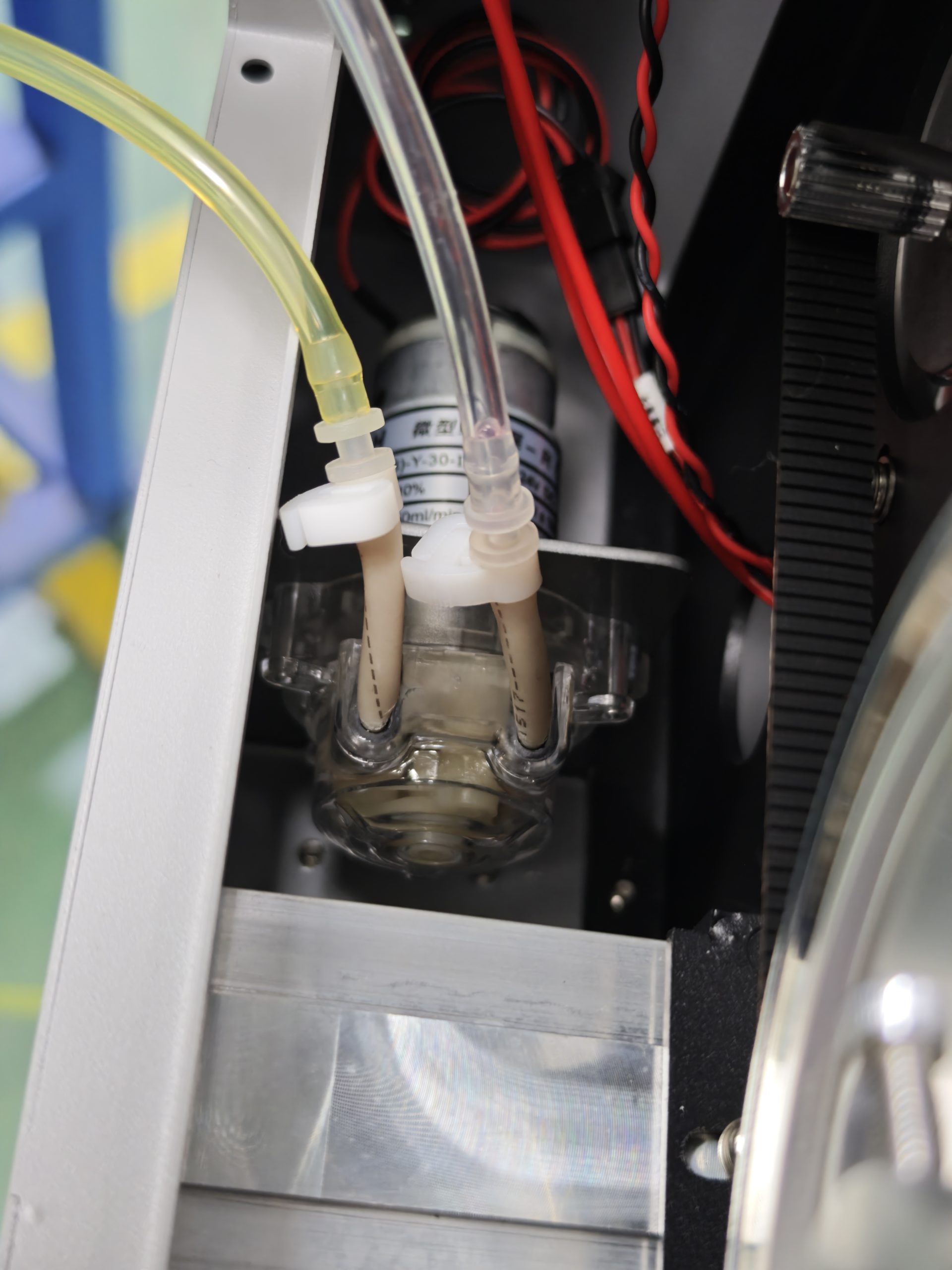

White Ink Recirculating Unit
Prevents white pigment sedimentation and maintains unimpeded ink flow to the printhead through continuous circulation.
Specifications
| Model | LC-703G | |
| Printhead type | i3200-A1 | |
| Printhead number | 3pcs | |
| Printhead height | 1.5mm-2.5mm | |
| Cleaning | Full automatic cleaning | |
| Printhead spray | Anti-blocking flash spray and automatic moisturizing | |
| Ink type | Pigment ink | |
| Ink color | CMYK+W+Glue | |
| Cartridge capacity | 1500ml / Color | |
| Print effective width | 600mm | |
| Type of medium | transfer transfer film | |
| Operating language | Chinese / English Operating system | |
| Operating system | Win11 / Win10 | |
| Working environment | Temperature range: 18 °C~25 °C; Humidity range: 35%~65%Rh | |
| RIP software | Maintop /Photoprint | |
| Power parameters | AC-220V ,50Hz /60Hz | |
| Power | Standby: 32W , Max: 1200W | |
| Noises | Standby<32dB , Max<=65dB | |

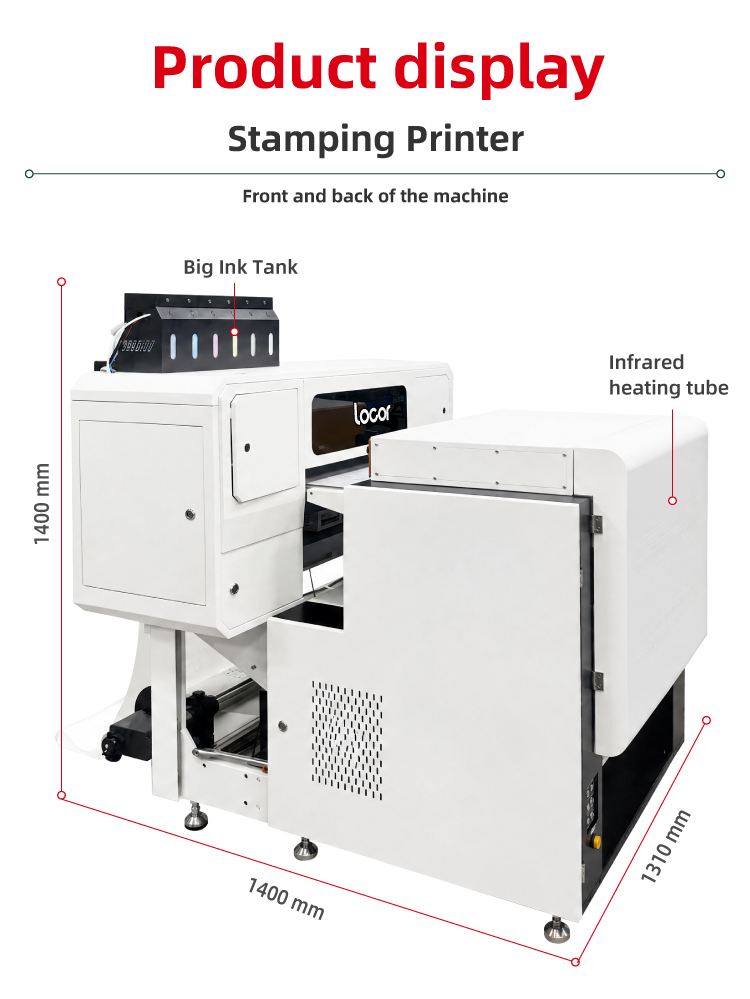

| Machine size(LxWxH) | 1400*1310*1400mm | |
| Packing size(LxWxH) | 1430*1350*1450mm | |
Optional Items
Get a Quote Now
Related Video
Factory Strength
A Powerful Printer Manufacturer From China Since 2003
20+ Years Printer Factory
Technical support
Support methods usually include telephone support, online customer service, remote support, etc.
Printing supplies
Locor manufacturers or authorized dealers usually provide corresponding inks, powder films and other consumables.
Spare parts
We usually provide customers with original accessories (such as boards, ink sacs, motors, etc.).
