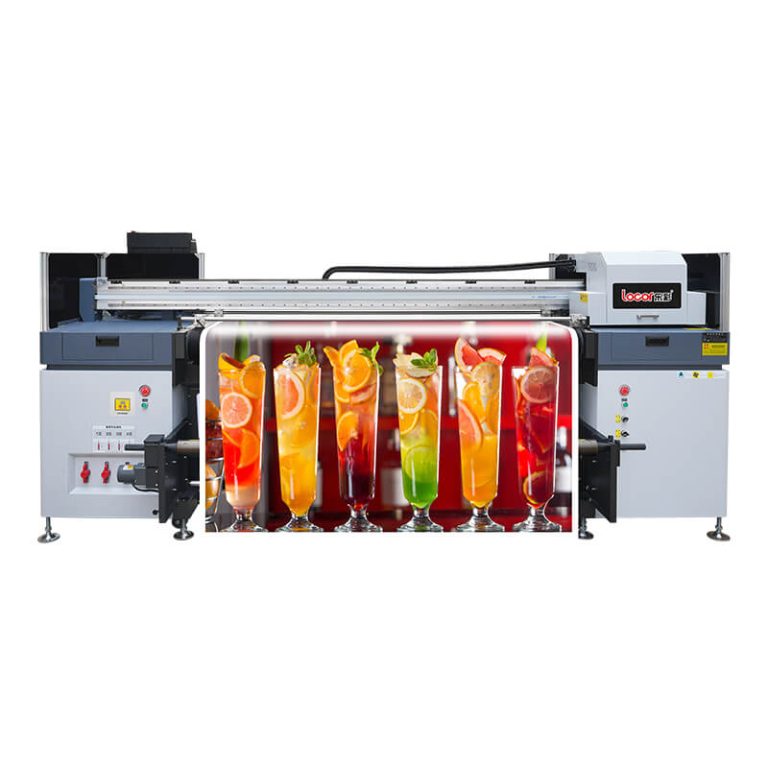

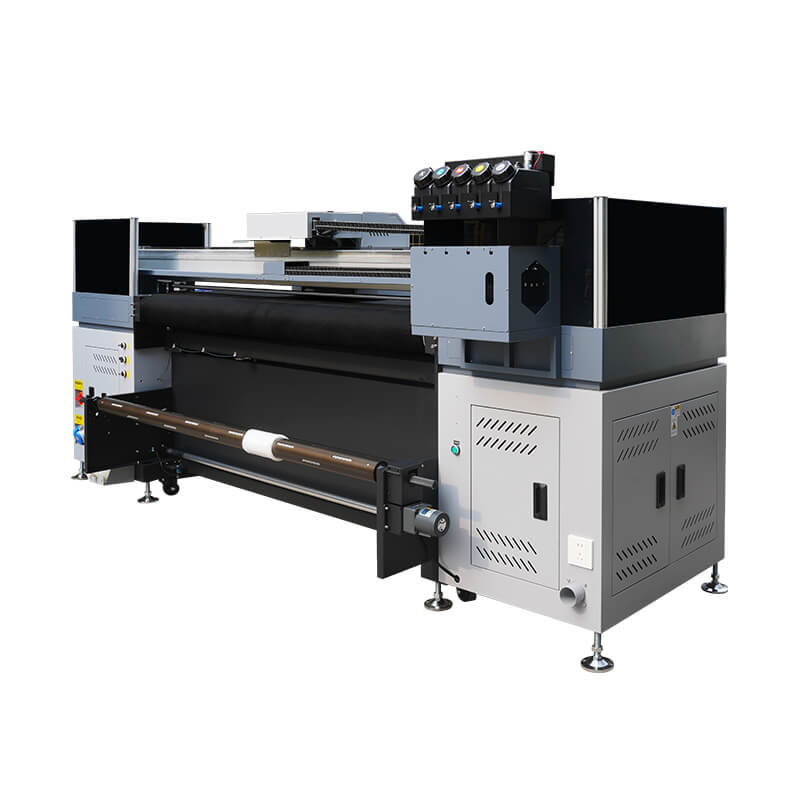

1.8m UV Hybrid Printer

Application

Description

A UV printer is a type of digital printer that uses ultraviolet (UV) light to cure or dry the ink as it is printed. Unlike traditional printing methods, UV printers can print directly on a wide range of materials, including plastic, glass, metal, wood, and acrylic. The UV-curable inks are exposed to UV light, which instantly hardens the ink, producing vivid, durable, and scratch-resistant prints. UV printers are commonly used for signage, promotional items, packaging, and custom products.

Specifications

Product Model	W-1800
Printhead Type	Epson i3200-U1
Number of Printheads	1-6 Pcs
Printhead Height	0-80mm
Printhead Cleaning	Full Automatic Cleaning: Strong, Medium, Weak
Ink Type	UV Ink
Ink Colors	K\C\M\Y\W–Lc Lm Lk LLK R
Ink Cartridge Capacity	3500ml per color

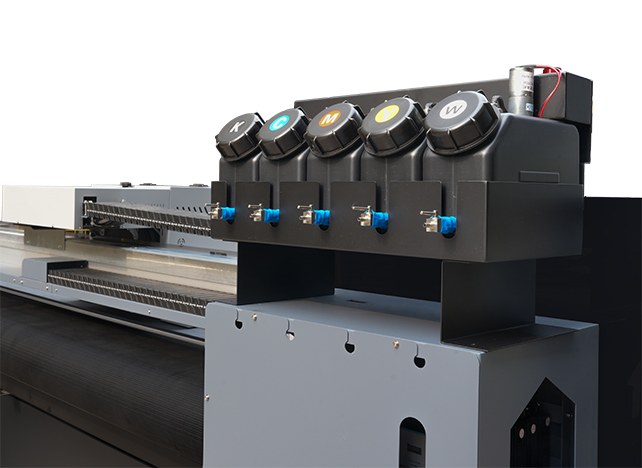

Ink Supply Method	Negative Pressure Continuous Ink Supply System
Printing Width	1820mm
Printing Direction	Bidirectional Printing
Printing Mode	Color-White-Color\Color-White\White-Color\Color1\Color2 (LED UV)
Media	13200-U1: Suitable for transparent glass stickers, transparent PVC films, 3P cloth, etc. I3200-A1/E1: Suitable for wall coverings, leather, etc.

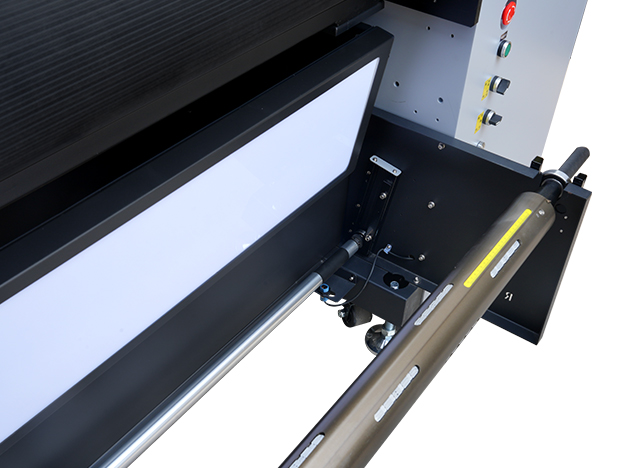

Paper Take-Up System	High-Power Automatic Roll-to-Roll System
Front Quality Inspection	LED Light Guide Panel
Computer Requirements	CPU: 15 \| Memory: 8GB or above
Computer System	Windows 11/Windows 10
Printing Interface	USB 3.0
RIP Software	MainTop 7.0 UV Edition, PhotoPrint 19 Edition
Power Parameters	AC 220V, 50Hz/60Hz, 10A
Power (W)	2000W
Noise Level	Standby Noise < 32dB, Operating Noise ≤ 65dB
Machine Dimensions	Main Top 7.0 UV Edition, PhotoPrint 19 Edition
