Application
Description
A UV DTF (Direct-to-Film) printer is a hybrid printing technology that combines aspects of UV printing and DTF (Direct-to-Film) processes to create high-quality, durable, and versatile transfers for various substrates.
Details

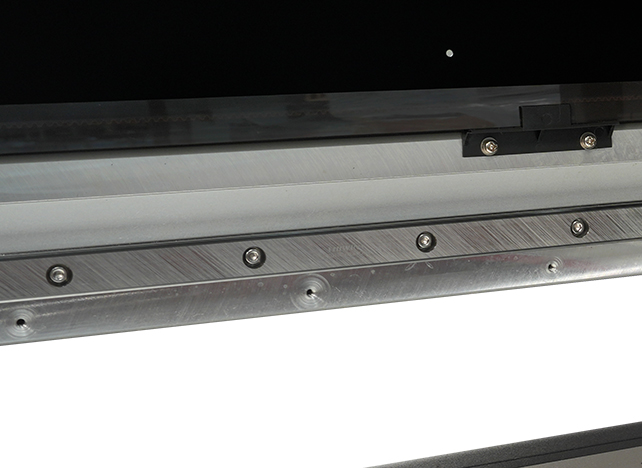

guide rail
Details

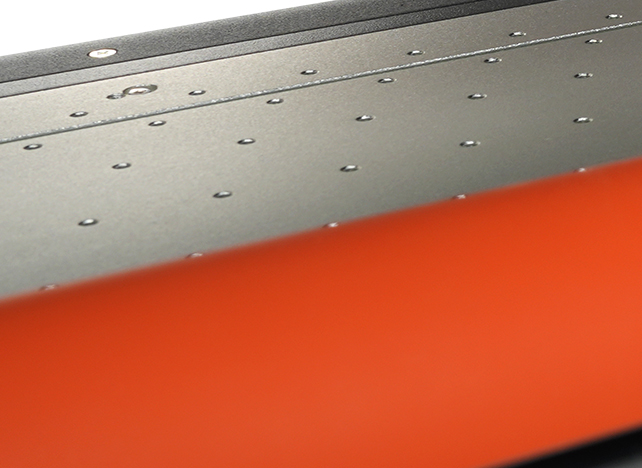

platform
Details

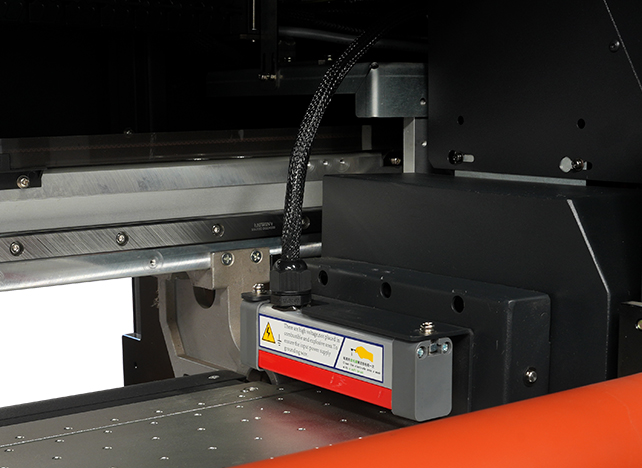

Static eliminator + nozzle anti-collision
Details

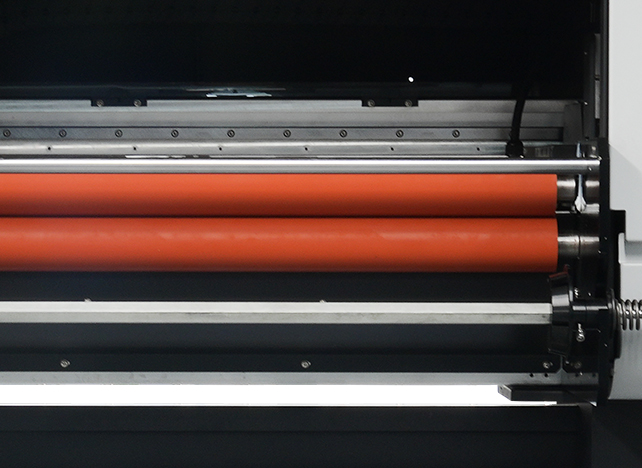

uv dtf rubber roller
Specifications
| Model | LC-704U | ||
| Printhead Type | 13200-U1 | ||
| Printhead Number | 4 pcs | ||
| Printing Width | 650mm | ||
| Speed | Sketch mode 13㎡/h | Production mode 8.2㎡/h | Quality mode 6.4㎡/h |
| Print head spray | Anti-blocking flash spray and automatic moisturizing | ||
| Ink type | UV DTF ink | ||
| Ink Color | Glue+White+CMYK+Varnish+ Gilding Varnish | ||
| Cartridge capacity | 1500ml/color | ||
| Ink Drying System | UV LED light+ UV water box | ||
| Laminating Rubber Roller | High temperature, support hot stamping | ||
| Laminater Pneumatic Lift | Bilateral cylinder | ||
| Laminator Moving Rod | Control the balance of lamination and paper feeding | ||
| Material Thickness | 1-3mm | ||
| Printing Media | UV DTF film, UV DTF sticker | ||
| Loadable coil weight | 40kg(below) | ||
| Taking Up Device | Front product film take-up device + rear protective film take-up device | ||
| Feeding Device | Standard | ||
| Operating system | Win11/Win 10 | ||
| Operating language | English/Chinese | ||
| Working environment | Temperature range:18℃~25 ℃; Humidity range: 35%~65%Rh | ||
| Print interface | USB | ||
| RIP software | Maintop | ||
| Power(W) | Standby:32W, Max: 1200W | ||
| Machine Dimension | 1480mm x 730mm x 1475mm (LxWxH) | ||
| Weight | 160 Kg | ||
Optional Items
Get a Quote Now
Related Video
Locor 70cm DTF T-shirt
UV Hybrid Printer + Platform
Let’s Learn about UV Flatbed Printers!
Factory Strength
A Powerful Printer Manufacturer From China Since 2003
20+ Years Printer Factory
Technical support
Support methods usually include telephone support, online customer service, remote support, etc.
Printing supplies
Locor manufacturers or authorized dealers usually provide corresponding inks, powder films and other consumables.
Spare parts
We usually provide customers with original accessories (such as boards, ink sacs, motors, etc.).
