Application
Description
High-strength frame, large steel plate links on the side, higher stability of the whole machine, can realize kilometer paper shaft, reduce the frequency of medium replacement, and greatly save time and manpower.

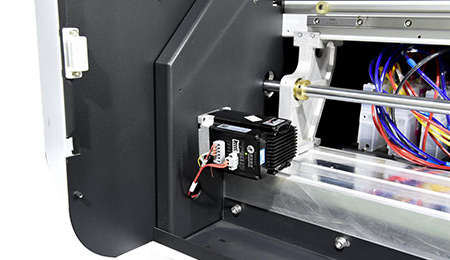

Leisai Motor
Equipped with high-power Leisai paper feed motors, significantly enhancing printing stability.

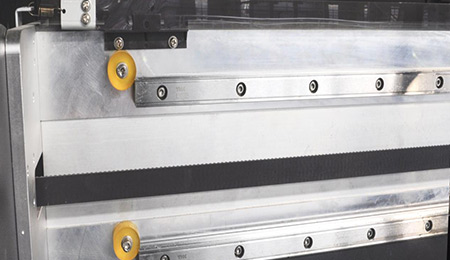

Dual Guide Rails
Equipped with THK silent dual guide rails, ensuring smoother vertical highspeed operation and higher printing precision.

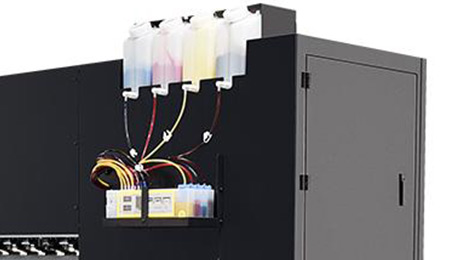

5000ML Large Ink Cartridges
Larger capacity reduces refills, saving time and labor. Built-in alarms alert for low ink, ensuring uninterrupted printing operation.

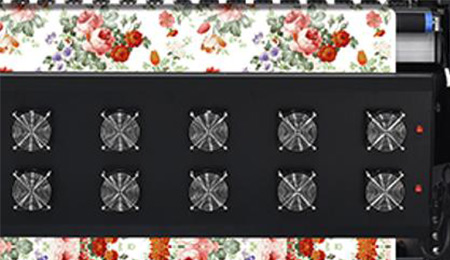

High-Power Dual Dryers
Equipped with dual dryers to speed up ink drying, ensuring smooth paper feeding and collection for high-speed printing.
Specifications

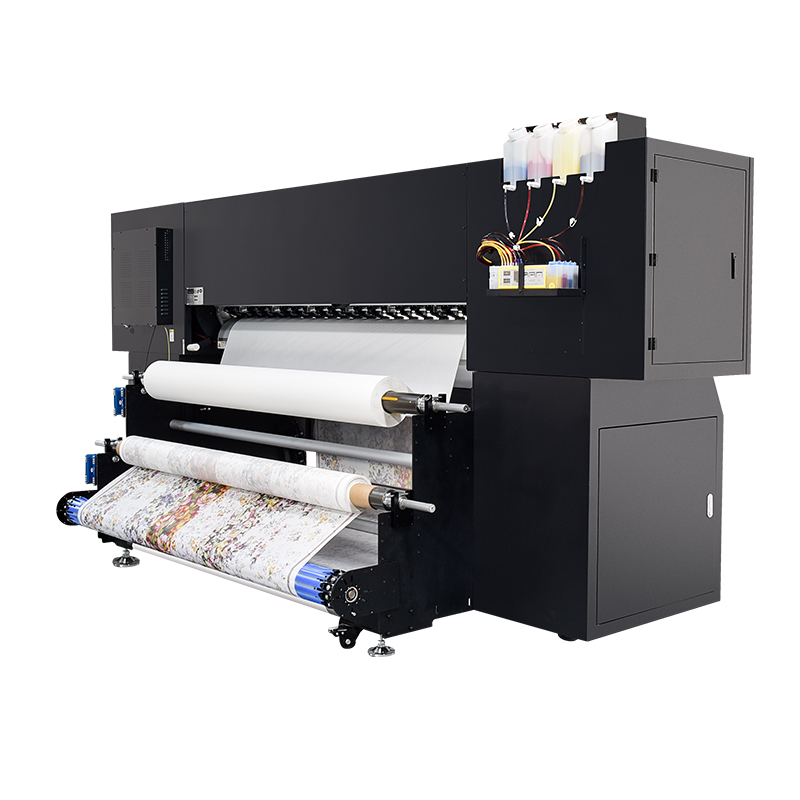

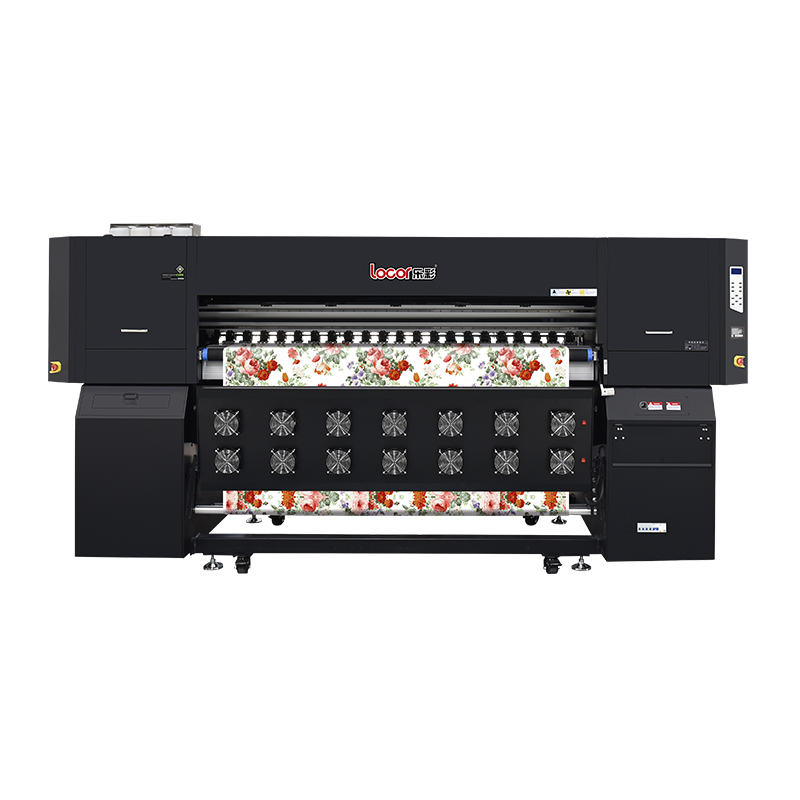

| Product Model | LC-1808B |
| Printhe ad Type | Epson i3200-A1 |
| Number of Printhead | 8 |
| Printhe ad Height | 2-3mm |
| Printhe ad Cleaning | Fully automatic cleaning with anti-clogging, flash spraying, andautomatic moisturizing functions |
| Ink Type | Dye-sublimation ink |
| Ink Color | Four colors(C/M/Y/K) |
| Ink Cartridge Capacity | 5000mlper color |
| Ink Supply Method | Negative pressure continuous ink supplysystem |
| Printing Width | 1820mm/2200mm |
| Media | Heat transfer paper |
| Maximum Roll Weight | Kilometer paper weight (optional) |
| Take-up Device | Air shaftautomatic winding and unwinding system |
| Heating System | Three-Stage Embedded Constant Temperature Heating System (Front, Middle, Rear) |
| External Drying Configuration | Dualinfrared heating with externaldrying fan |
| Operation Language | Chinese/English |
| Computer System | Win11/Win10 |
| Operating Environment | Temperature range 18°C-25*C;Humidity range 35%-65% Rh |
| Printing Interface | USB |
| RIP Software | Maintop/Photoprint/Wasatch |
| Power Parameters | AC-220V, 50Hz/60Hz |
| Power(W) | Standbypower 64W,maximum power 10000W |
| Noise Level | Standby <32dB,operating s65dB |
| Machine Dimensions | 3650x146x1850mm(LxWxH) |
| Machine Net Weight | 850 Kg |
| Package Dimensions | 3750x1550x1850mm(LxWxH) |

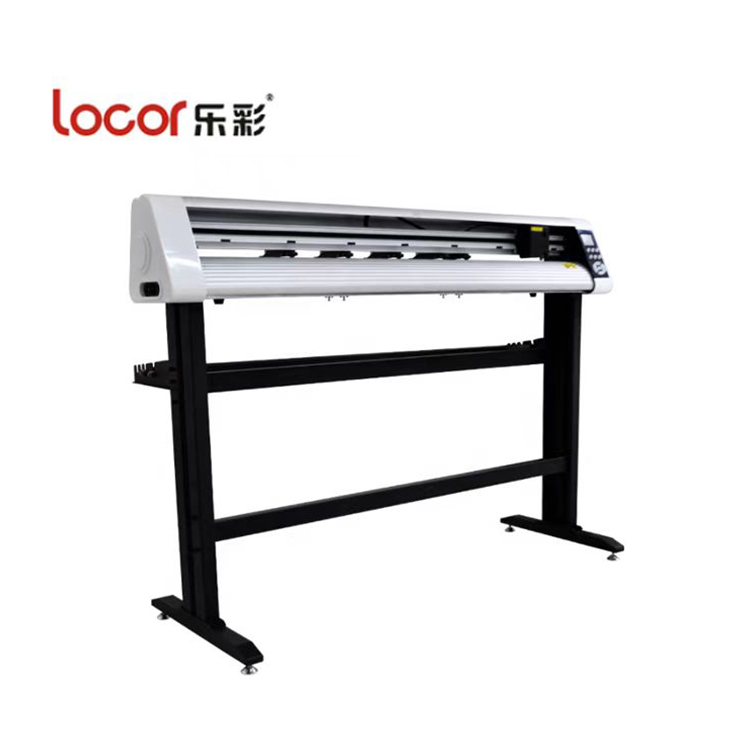

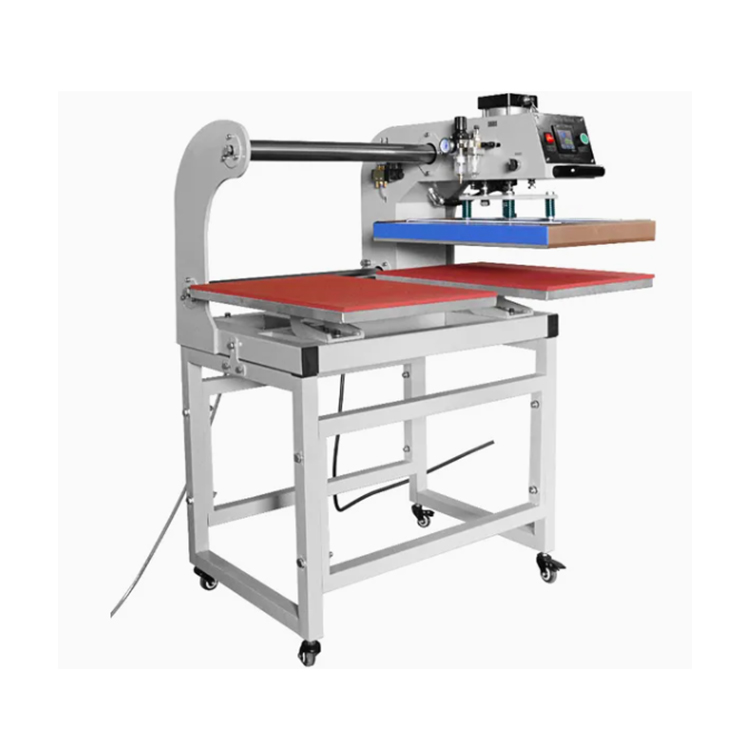

Optional Items
Get a Quote Now
Related Video

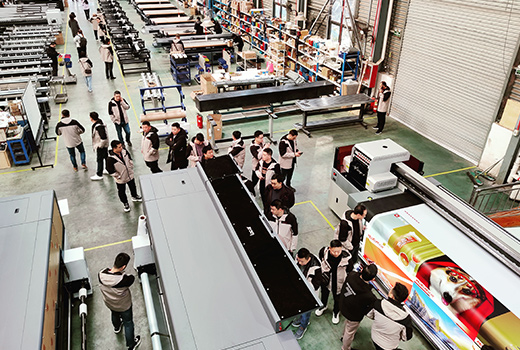

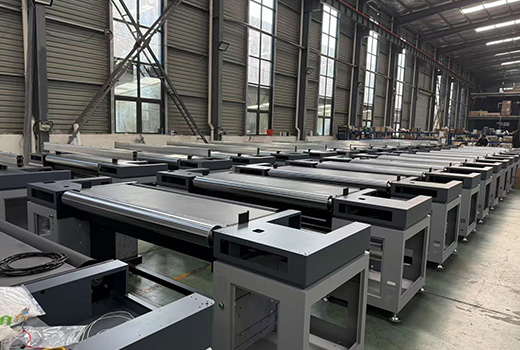

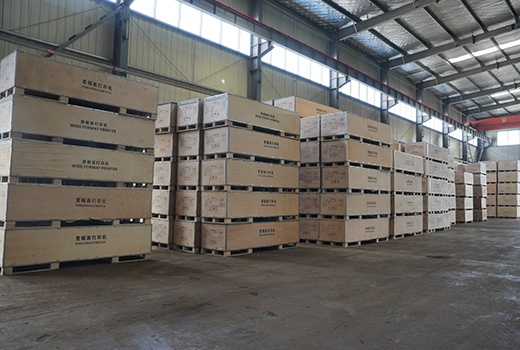

Factory Strength
A Powerful Printer Manufacturer From China Since 2003
20+ Years Printer Factory
Technical support
Support methods usually include telephone support, online customer service, remote support, etc.

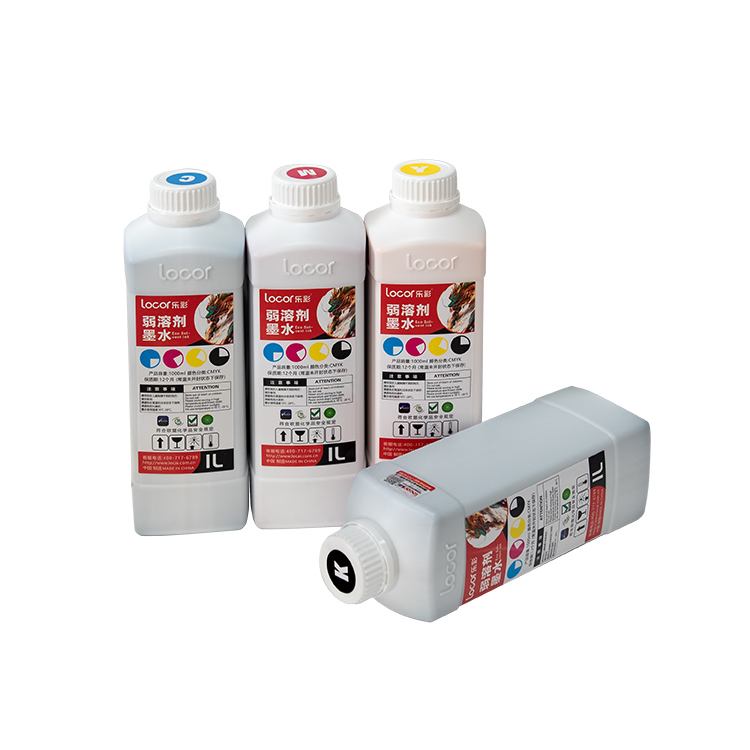

Printing supplies
Locor manufacturers or authorized dealers usually provide corresponding inks, powder films and other consumables.
Spare parts
We usually provide customers with original accessories (such as boards, ink sacs, motors, etc.).
