Application
Description

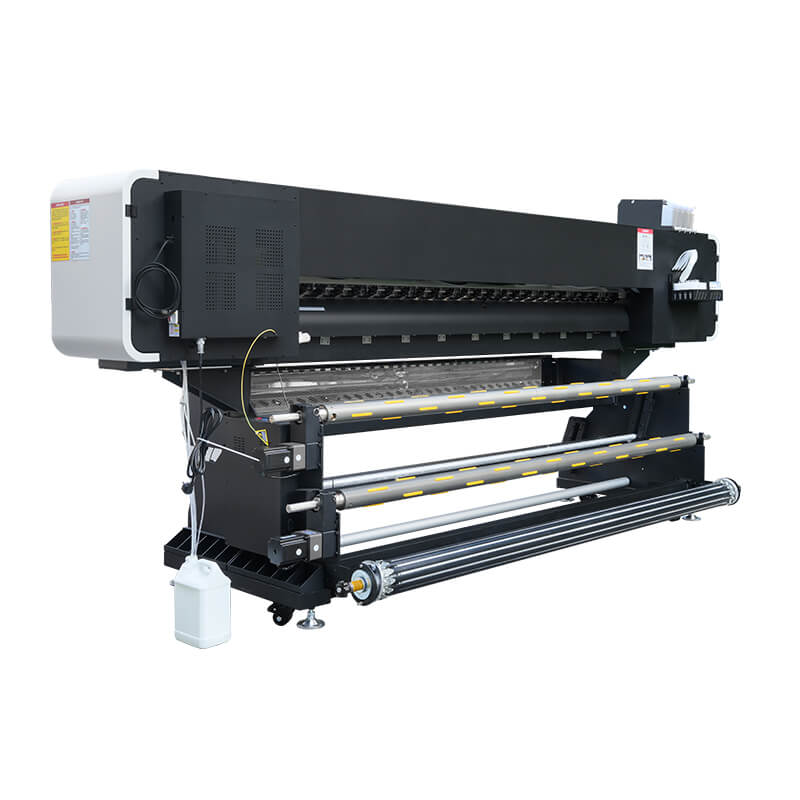

High-strength frame, large steel plate links on the side, higher stability of the whole machine, can realize kilometer paper shaft, reduce the frequency of medium replacement, and greatly save time and manpower.
Leisai Motor
Equipped with high-power Leisai paper feed motors, significantly enhancing printing stability.
Dual Guide Rails
Equipped with THK silent dual guide rails, ensuring smoother vertical highspeed operation and higher printing precision.

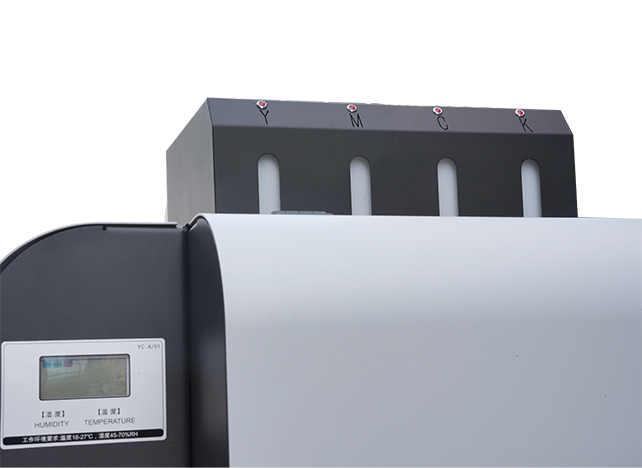

5000ML Large Ink Cartridges
Larger capacity reduces refills, saving time and labor. Built-in alarms alert for low ink, ensuring uninterrupted printing operation.

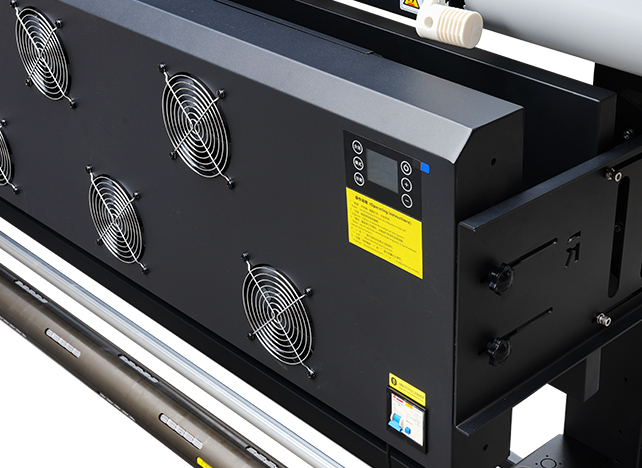

High-Power Dual Dryers
Equipped with dual dryers to speed up ink drying, ensuring smooth paper feeding and collection for high-speed printing.
Specifications
| Product Model | LC-1808A | LC-1804A |
| Printhe ad Type | Epson i3200-A1 | Epsoni3200-A1 |
| Number of Printhead | 8 | 4 |
| Printhe ad Height | 2-3mm | |
| Printhead Cleaning | Fully automatic cleaning with anti-clogging,flash spraying, and automatic moisturizing functions | |
| Ink Type | Dye-sublimation ink | |
| Ink Color | Four colors(C/M/Y/K) | |
| Ink Cartridge Capacity | 5000mlper color | |
| Ink Supply Method | Negative pressure continuo us ink supplysystem | |
| Printing Width | 1820mm/2200mm | |
| Media | Heat transfer paper | |
| Maximum Roll Weight | Kilometer paper weight(optional) | |

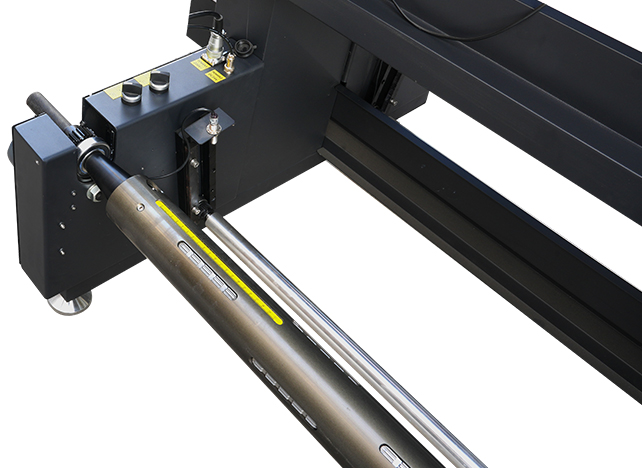

| Take-up Device | Air shaftautomatic winding and unwinding system | |
| Heating System | Three-Stage Embedded Constant Temperature Heating System (Front, Middle, Rear) | |
| External Drying Configuration | Dual infraredheating with external drying fan | |
| Operation Language | Chinese/English | |
| Computer System | Win11/Win10 | |
| Operating Environment | Temperature range 18°℃C-25℃;Humidity range 35%-65% Rh | |
| Printing Interface | USB | |
| RIP Software | Maintop/Photoprint/Wasatch | |
| Power Parameters | AC-220V, 50Hz/60Hz | |
| Power(W) | Standbypower 64W,maximum power 6000W | |
| Noise Level | Standby <32dB,operating s65dB | |
| Machine Dimensions | 3500mmx1300mmx1750mm(LxWxH) | |
| Machine Net Weight | 750 Kg | |
| Package Dimensions | 3500mmx1050mmx675mm(LxWxH) | |
