Application
Description
Details

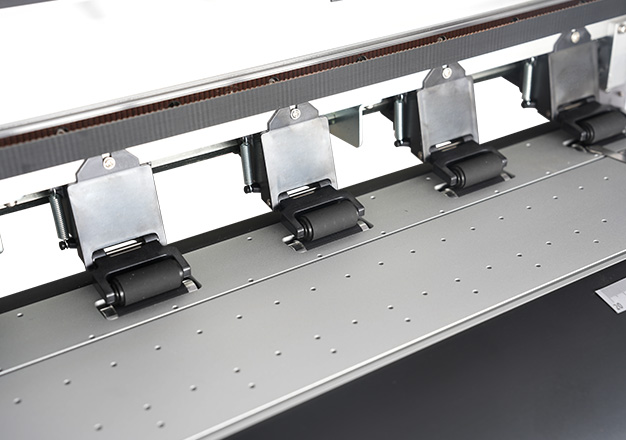

Printing Platform
650mm working width and well matched PET film; The porous design helps the material fit the platform better.
Details

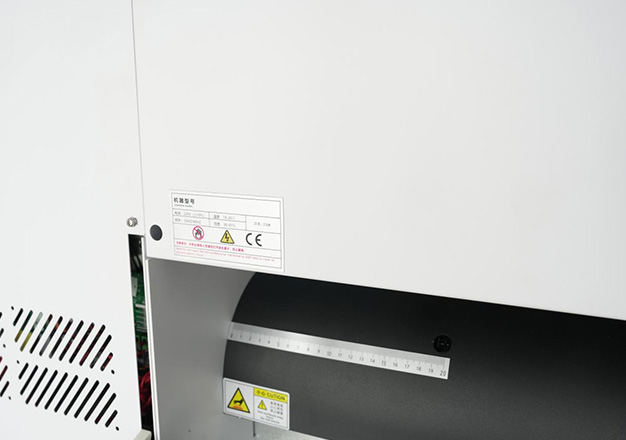

Dtf Film Sensor
Details

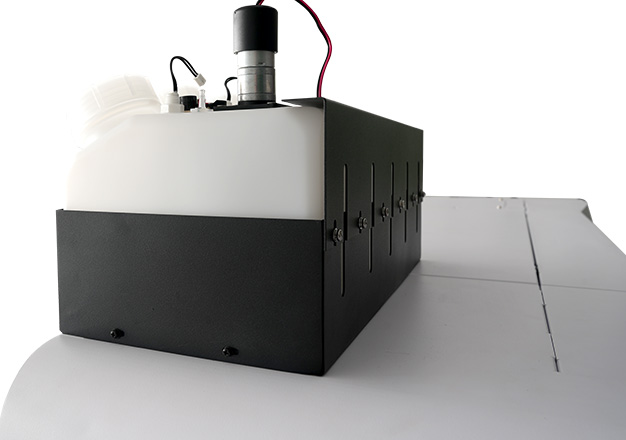

White Ink Stirrer
Prevent white ink from curing.
Details

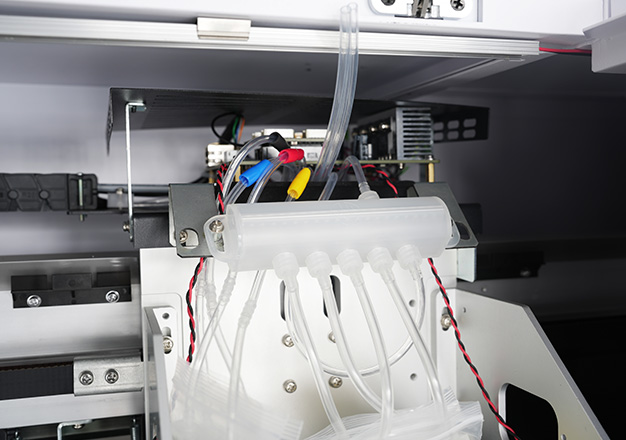

White Ink Diverter
Better to ensure the white ink smooth.
Specifications
| Model | 6502 | 6504 |
| Printhead type | i3200-A1 / i1600-A1 | i3200-A1 |
| Printhead number | 2pcs | 4pcs |
| Printhead height | 1.5mm-2.5mm | |
| Cleaning | Full automatic cleaning | |
| Printhead spray | Anti-blocking flash spray and automatic moisturizing | |
| Ink type | Pigment ink | |
| Ink color | CMYK+W , Fluorescent color available | |
| Cartridge capacity | 1500ml / Color | |
| Print effective width | 650mm | |
| Type of medium | Heat transfer PET film | |
| Operating language | Chinese / English Operating system | |
| Operating system | Win11 / Win10 / Win7 | |
| Working environment | Temperature range: 18 °C~25 °C; Humidity range: 35%~65%Rh | |
| RIP software | Maintop /Photoprint | |
| Power parameters | AC-220V ,50Hz /60Hz | |
| Power | Standby: 32W , Max: 1200W | |
| Noises | Standby<32dB , Max<=65dB | |
| Machine size(LxWxH) | 1480*560*1365mm | 1810*596*1525mm |
| Net weight | 170 Kg | 178 Kg |
| Packing size(LxWxH) | 1540*750*835mm | 1794*900*1010mm |
| Powder Shaker | |
| Powder feeding control | Shake control, sprinkle control,direction and amount control |
| Heating and drying function | Front guide plate heating, upper drying and curing, double-row cold air cooling |
| Media feeding | Mesh belt conveor |
| Electrical parameters | Rated voltage 220V rated current 23A, rated power 5Kw, energy cnsumption 3.5-5 Kw |
| Machine size and weight | 1953*1002*1092mm, N.W: 229kg |
| Packing size and weight | 1800*1130*1140mm, G.W: 303kg |
