Application
Description
A UV printer is a type of digital printer that uses ultraviolet (UV) light to cure or dry the ink as it is printed. Unlike traditional printing methods, UV printers can print directly on a wide range of materials, including plastic, glass, metal, wood, and acrylic. The UV-curable inks are exposed to UV light, which instantly hardens the ink, producing vivid, durable, and scratch-resistant prints. UV printers are commonly used for signage, promotional items, packaging, and custom products.
Specifications
| Product Model | LC-UV2513 |
| Print Head Type | Ricoh Gn5 / Ricoh Gn6 / Konica |
| Number of Print Heads | 2-12pcs |
| Print Head Height | 0-120mm |
| Output Resolution | 635*600dpi/635*900dpi/635*1200dpi |
| Ink Type | Environmentally friendly LED UV ink with vibrant colors and high outdoor durability (VOC-free) |
| Ink Color | C/M/Y/K + Lc + Lm + W + V (supports double white and varnish printing) |
| Ink Bottle Capacity | 3500ml per color for main ink tanks |
| Ink Supply Method | Negative pressure continuous ink supply |
| Printing Width | 2500x1300mm |
| Media | Plates (glass, acrylic, aluminum-plastic board, wood, PVC board, foam board, 3C products, organic board, ceramic, foam board, metal board, plastic, fabric, leather, tiles, etc.) |

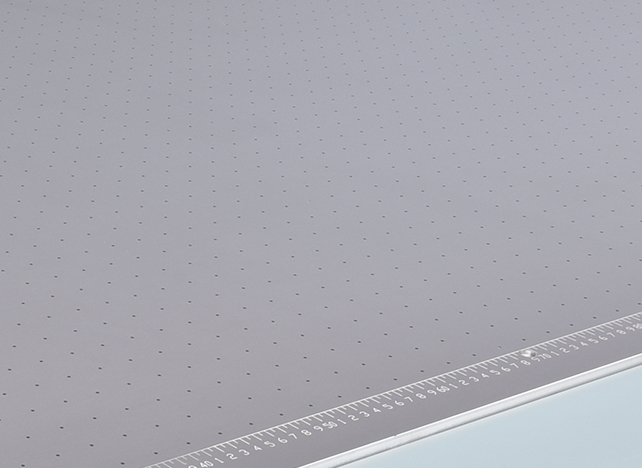

| Vacuum Table | Vacuum adsorption media fixing platform |
| RIP Software Configuration | Photoprint, Onyx, etc. (optional) |
| File Format | TIFF, JPEG, POSTSCRIPT, EPS, PDF, etc. |
| Interface | High-speed USB 3.0 |
| Operating System | Windows 11/10 64-bit |
| Power Supply | 200-240VAC, single-phase, 50/60Hz, 32A, 4500W |
| Machine Volume & Weight | 4500mm x 2200mm x 1500mm (L*H*W) & 1500kg |
| Packaging Volume & Weight | 4600mm x 2300mm x 1700mm (L*H*W) & 1600kg |
Optional Items
Get a Quote Now
Related Video
Factory Strength
A Powerful Printer Manufacturer From China Since 2003
20+ Years Printer Factory
Technical support
Support methods usually include telephone support, online customer service, remote support, etc.
Printing supplies
Locor manufacturers or authorized dealers usually provide corresponding inks, powder films and other consumables.
Spare parts
We usually provide customers with original accessories (such as boards, ink sacs, motors, etc.).
